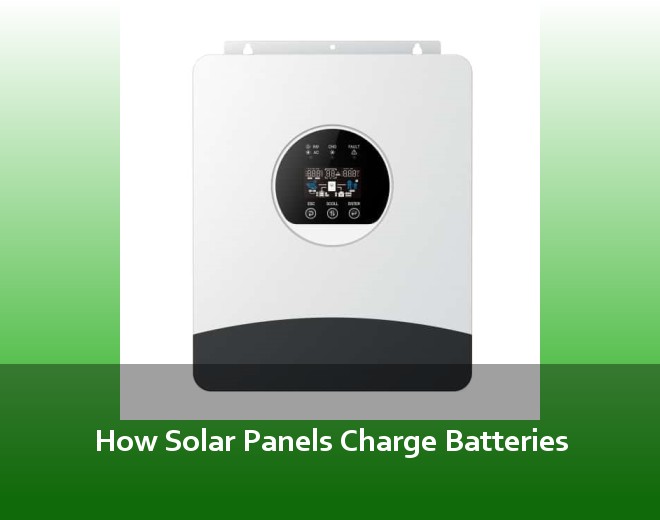

How Solar Panels Charge Batteries

The Photovoltaic Basics

Ever wondered how sunlight becomes electricity in your solar battery? It all starts with the photovoltaic effect – that magical process where solar cells convert photons into electrons. When sunlight hits silicon layers in panels, it creates direct current (DC) electricity. But wait, doesn't your home use alternating current (AC)? That's where inverters come in, though battery systems often store DC directly.

Consider this: A typical 400W solar panel generates about 1.6-2 kWh daily. Enough to charge a 100Ah lithium battery in 5 hours of peak sun. But why do some systems perform better? The secret lies in matching panel output to battery chemistry.

Key System Components

Every effective solar charging system needs three core elements:

1. Solar panels (monocrystalline vs polycrystalline)
2. Charge controller (PWM or MPPT)
3. Battery bank (lithium-ion vs lead-acid)

MPPT controllers can boost efficiency by 30% compared to basic PWM models. As battery expert Dr. Linda Yang noted last month: "The 2023 push for smart charge controllers has revolutionized residential solar storage."

Maximizing Charging Efficiency

Why does your neighbor's system out perform yours? Panel tilt matters more than you'd think. A 10° miscalculation in Arizona can reduce output by 5%. Seasonal adjustments using simple tilt brackets maintain optimal angles without professional help.

Practical Installation Guide

Installing a DIY system isn't rocket science, but safety first! Always:

• Disconnect panels before wiring
• Use UV-resistant cabling
• Install proper fusing

The Smith family in Texas reduced their grid dependence by 70% using a 5kW system with battery backup. Their secret? They sized their battery bank to store 1.5 days of usage – smart insurance against cloudy days.

Long-Term Maintenance Tips

Solar systems aren't "install and forget" solutions. Quarterly panel cleaning improves output by 15% in dusty areas. Monthly battery voltage checks prevent sulfation in lead-acid types. And here's a pro tip: Rotate battery positions annually in multi-unit banks for balanced aging.

As we approach Q4 2023, new thin-film solar technologies promise 25% efficiency gains. But existing systems still deliver excellent ROI – most pay for themselves in 6-8 years through energy savings and tax incentives.

Remember that viral TikTok showing a solar-powered tiny home? Turns out they used basic components available at any hardware store. The takeaway? Effective energy storage doesn't require cutting-edge tech, just smart implementation of available solutions.

Related Contents

How Many Solar Panels to Charge 4 x 105Ah Batteries?

Let's start with your 105Ah batteries. The "Ah" stands for amp-hours, but here's the catch – that rating assumes discharge over 20 hours at 80°F (27°C). In real-world solar systems, you'll typically use about 50% of that capacity to preserve battery life. So for 4 batteries:

Can Solar Panels Charge Deep Cycle Batteries?

Let's cut through the noise - solar panels absolutely can charge deep cycle batteries, but there's a catch you won't hear from most salespeople. The secret lies in matching three critical elements: panel output, battery chemistry, and charge control. a standard 100W solar panel under optimal sunlight produces about 30Ah daily. Now, if you're trying to charge a 200Ah deep cycle battery from 50% discharge, you'd need roughly four full sun days without any power consumption. Doesn't sound so simple now, does it?

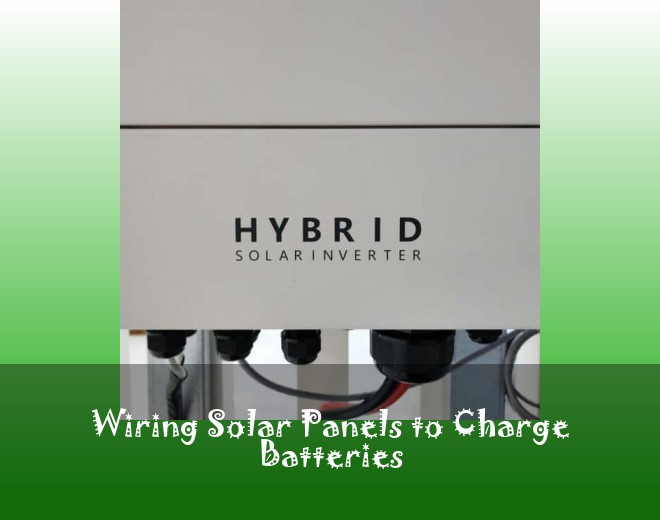

Wiring Solar Panels to Charge Batteries
