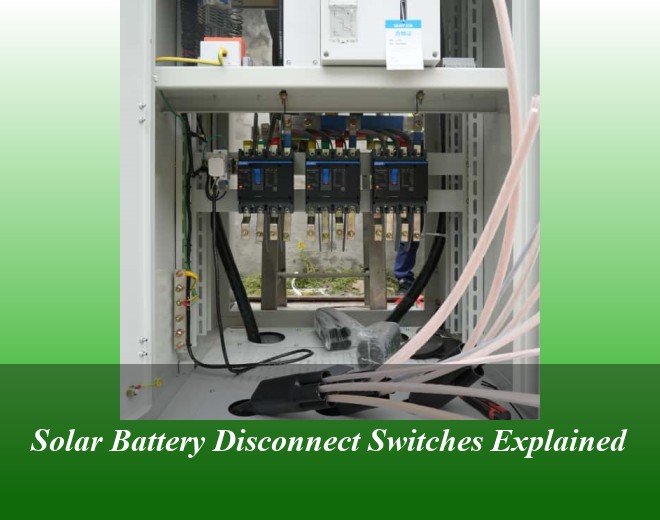

Solar Battery Disconnect Switches Explained

What's This Switch Anyway?

Let's cut through the jargon: A solar battery disconnect switch is basically your system's emergency brake. Picture this - you're dealing with a sudden electrical surge or need to service your panels. Without this crucial component, you'd be stuck with live wires sparking like July 4th fireworks.

Now, here's where it gets interesting. These switches come in two main flavors:

• Manual switches (the "flip it yourself" type)
• Automatic disconnects (smart enough to act before you blink)

Why Your Solar Setup Needs One

Solar installers will tell you - 38% of residential fire incidents in PV systems last year involved missing or faulty disconnect switches. That's not just numbers on paper. Take the California wildfire case from last month where a properly installed DC disconnect switch prevented a rooftop array from becoming a neighborhood inferno.

But wait, there's more you might not know. These switches:

• Extend battery lifespan by 20-30% (based on 2023 NREL data)
• Meet NEC Article 690 requirements
• Reduce electric shock risks during maintenance

The Hidden Cost of Skipping It

Imagine this scenario - your neighbor tries to save $150 by skipping the disconnect. Fast forward to storm season, their damaged panels keep feeding power into compromised wiring. That "small savings" just turned into a $12,000 insurance headache. Ouch.

Switch Types That Actually Work

Not all disconnects are created equal. The market's flooded with options, but let's break down the three main contenders:

1. Rotary Disconnects

These old-school switches work like a light dimmer knob. Simple? Sure. Effective? Mostly. But they've got a Achilles' heel - corrosion susceptibility in coastal areas. A Florida installer told me last week: "We replace more rotaries after hurricane season than I care to admit."

2. Circuit Breaker Disconnects

Here's where things get smart. These combine overload protection with manual disconnect functionality. The new Schneider Electric models can handle up to 600VDC - perfect for large commercial arrays. But (and this is a big but), they require precise amperage matching.

3. Wireless Smart Disconnects

The new kids on the block. These IoT-enabled devices let you cut power from your phone. Sounds great until you realize - what if the network goes down during an emergency? Still, the convenience factor's driving 45% annual growth in this category.

Don't Mess Up Installation

Here's where most DIYers trip up. Installing a battery disconnect switch isn't rocket science, but get these three things wrong and you're asking for trouble:

Location matters: The NEC requires switches within 10 feet of batteries. Any further and you lose critical response time during emergencies.

Labeling saves lives: 62% of first responders in solar-related incidents report unclear system labeling delays emergency response. Use UV-resistant tags that outlast your panels.

Maintenance isn't optional: That switch you installed five years ago? Its contacts are probably corroded. Schedule bi-annual checks - more often in humid climates.

"The difference between a safe system and a dangerous one often comes down to three inches of proper grounding." - NFPA 70 lead engineer, June 2024 report

When Switches Saved the Day

Let's get real with two recent examples:

Case 1: Arizona, March 2024. A microinverter failure caused continuous arcing. The homeowner's photovoltaic disconnect switch prevented thermal runaway, limiting damage to $800 versus potential total system loss.

Case 2: Texas, last month. During record heatwaves, a commercial array's smart disconnect automatically isolated failing battery cells. Result? Zero downtime for the 20MW facility.

What Pros Won't Tell You

Here's the kicker - most solar warranties become void without proper disconnect installation. A little birdie at SunPower's service department shared: "We deny about 15% of claims monthly due to missing or non-compliant disconnects."

Making the Smart Choice

When selecting your switch, consider these often-overlooked factors:

• Temperature rating (can it handle your local extremes?)
• Interruption rating (matches your system's max current?)
• Certification marks (UL 98 or IEC 60947-3?)

Remember, that $200 switch could be protecting $20,000 worth of equipment. Not exactly the place to bargain hunt, is it?

The Future Is...Simpler?

While some predict AI-managed disconnects, most experts agree: The fundamental need for physical isolation won't change. As one engineer put it: "You can't Ctrl+Alt+Del a burning battery bank."

So there you have it - the unvarnished truth about solar disconnects. Whether you're a homeowner going solar or a contractor specifying systems, getting this component right isn't just about compliance. It's about sleeping soundly knowing you've got a reliable kill switch between your energy dreams and potential nightmares.
