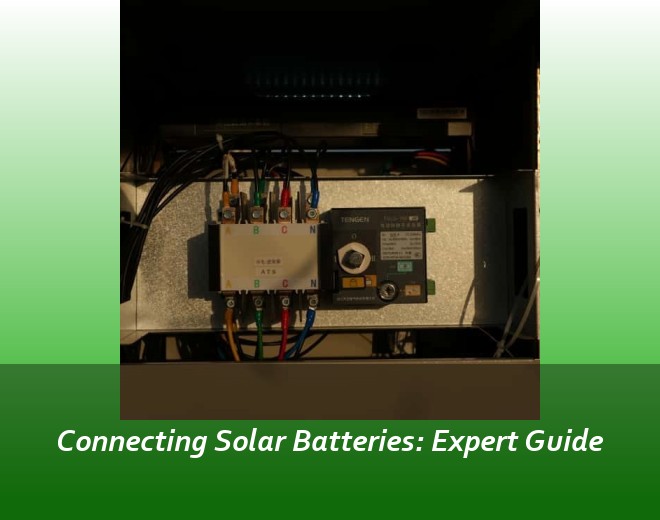

Connecting Solar Batteries: Expert Guide

Why Proper Battery Connections Make or Break Your Solar System

Did you know that nearly 40% of solar energy inefficiencies stem from poorly configured battery setups? Whether you’re powering a cabin or a commercial building, how you connect your solar batteries directly impacts energy storage, safety, and system lifespan. Let’s cut through the jargon and break down what actually works.

The Hidden Risks of DIY Configurations

Last month, a Colorado homeowner learned the hard way: after wiring four lithium-ion batteries in series without balancing voltages, their $12,000 system failed within weeks. Voltage spikes fried the inverter, and replacement costs exceeded $3,500. Moral of the story? Connecting batteries for solar panels isn’t just about cables—it’s about understanding energy flow.

Series vs. Parallel: Which Suits Your Solar Array?

Here’s the deal:

• Series connections boost voltage (e.g., 4x 12V batteries = 48V system)
• Parallel connections increase capacity (e.g., 4x 200Ah batteries = 800Ah total)

Step-by-Step: Wiring Batteries for Solar Storage

Let’s get practical. For a 24V system using four 12V batteries:

1. Group batteries into two series pairs (12V + 12V = 24V per pair)
2. Connect pairs in parallel to maintain 24V while doubling capacity
3. Use equal-length cables to prevent imbalanced resistance

Mistake #1: Ignoring Voltage Drop

Arizona installers recently faced a 15% efficiency loss in a 50-foot solar array run. Why? Undersized cables. For runs over 10 feet, calculate wire gauge using this formula: Voltage Drop (%) = (Current × Distance × 2) / (Conductivity × Cross-Sectional Area) Keep drops below 2% to avoid turning your precious solar juice into expensive heat.

Case Study: Off-Grid Win in Texas Heat

Meet Sarah, who runs a 100% solar-powered ranch. By configuring eight LiFePO4 batteries in a 48V series-parallel array, she stores 40 kWh daily—enough to power AC units even during 105°F summers. Her secret? Temperature-regulated enclosures and bimonthly voltage checks. “It’s like maintaining a good friendship,” she laughs. “Show up consistently, and things won’t blow up.”

When to Call a Pro (And When to DIY)

Rewiring a small RV system? Go ahead. But for grid-tied setups or lithium-ion banks, hire certified installers. As of March 2024, the National Electric Code requires arc-fault protection on all solar battery circuits. Skip this, and your insurance might ghost you after a fire.

Future-Proofing Your Connections

With the U.S. solar storage market growing 200% annually, staying updated matters. Tools like smart busbars now auto-detect faulty links, while modular battery designs let you scale systems painlessly. Thinking long-term? Nickel-based batteries are gaining traction for extreme temps—perfect for Alaskan winters or Nevada deserts.

Final Thought: It’s Not Rocket Science—But Close

Look, nobody expects you to be Einstein. But mastering battery connections for solar ensures your system survives Tuesday’s hail storm and Thursday’s heatwave. Start with quality components, double-check every bolt, and remember: electrons are lazy. Give them a smooth path, and they’ll work overtime for you.
