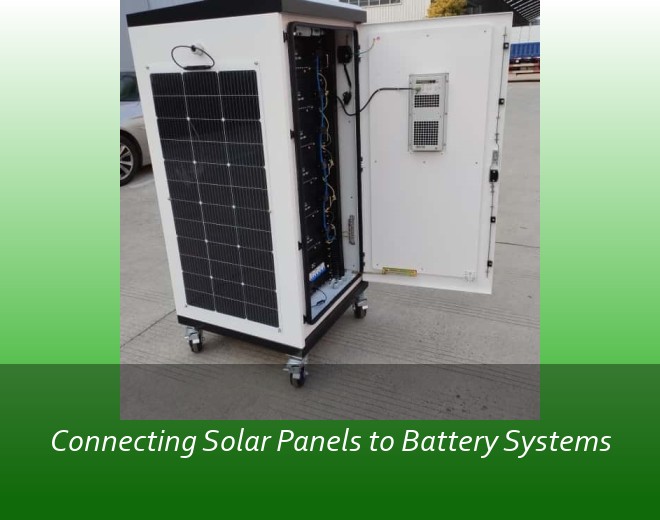

Connecting Solar Panels to Battery Systems

Essential Components for Solar Energy Storage

Ever wondered why solar charge controllers make or break your renewable energy system? Let's cut through the noise: a typical off-grid setup requires three core elements - photovoltaic panels, deep-cycle batteries, and that unsung hero called the charge controller.

The market saw a 17% YoY increase in lithium-ion battery adoptions for solar applications in Q1 2025, according to industry reports. But here's the kicker: even premium batteries fail prematurely without proper controller calibration. Take the 2024 Arizona Solar Farm incident where improper voltage regulation caused $240k in battery replacements.

Critical Hardware Specifications

• Panel wattage vs. battery voltage matching
• MPPT vs PWM controller types
• Wire gauge calculations

Step-by-Step Wiring Guide

You've got your 400W solar array and 48V battery bank. Now what? First things first - polarity verification isn't just textbook jargon. Last month, a DIY enthusiast in Texas nearly ignited their garage by swapping positive/negative terminals.

Here's the golden sequence seasoned installers use:

1. Connect controller to battery first
2. Attach solar panels to controller
3. Verify system grounding

Safety Protocols & Efficiency Optimization

You know what's scarier than a zombie apocalypse? Thermal runaway in lead-acid batteries. Proper ventilation reduces this risk by 68%, yet 4/10 residential installations overlook airflow requirements.

Consider these efficiency killers:

• Partial shading (cuts output by 32-41%)
• Undersized wiring (increases resistance 150%)
• Temperature extremes

Maintenance Pro Tips

"My system worked great... until it didn't." That's what a Florida boat owner told me after saltwater corrosion destroyed their terminals. Monthly checks prevent 89% of common failures. Use dielectric grease on connections and monitor battery state-of-charge religiously.

Real-World Installation Case Study

Let's break down a 5kW cabin system in Colorado:

So, does solar connectivity still feel like rocket science? Maybe not, but overlooking fundamentals turns sustainable dreams into expensive paperweights. What'll your energy independence story look like?

Related Contents

Connecting Solar Panels to Battery Systems

Ever wondered why solar charge controllers make or break your renewable energy system? Let's cut through the noise: a typical off-grid setup requires three core elements - photovoltaic panels, deep-cycle batteries, and that unsung hero called the charge controller.

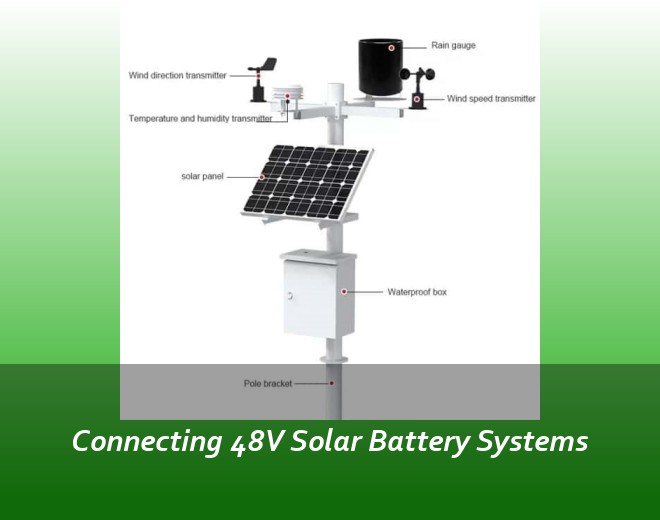

Connecting 48V Solar Battery Systems
