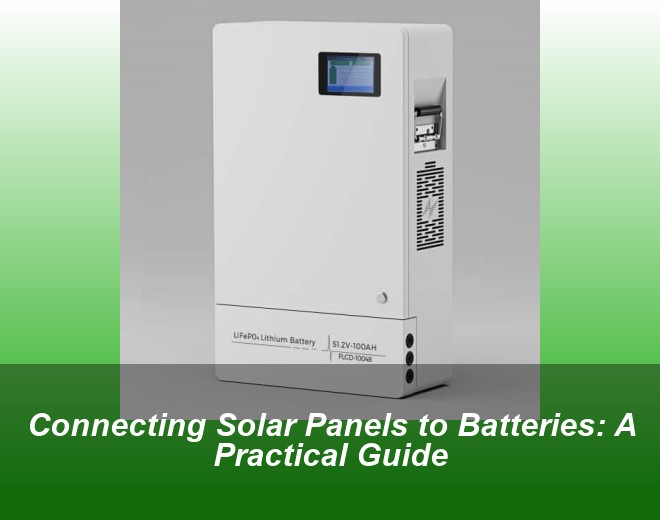

Connecting Solar Panels to Batteries: A Practical Guide
Table of Contents
Why Connect Batteries to Solar Panels?
Ever wondered how solar enthusiasts power their homes at night? The secret lies in pairing solar panels with energy storage systems. While solar panels generate electricity during daylight, batteries store excess energy for later use - creating a self-sufficient power cycle that's revolutionizing renewable energy adoption.
Recent data shows 68% of new solar installations in 2025 include battery storage, up from just 32% in 2020. This surge stems from improved battery technology and growing awareness of energy independence. But how exactly does this pairing work?
Choosing the Right Battery Type
Not all batteries are created equal for solar storage. Let's break down the main contenders:
- Lead-Acid (Cost-effective but heavy)
- Lithium-Ion (Lightweight with longer lifespan)
- Saltwater (Eco-friendly newcomer)
A homeowner in Arizona recently shared: "We opted for lithium-ion batteries despite higher upfront costs. Three years in, they've maintained 92% capacity - way better than our previous lead-acid setup." This aligns with industry reports showing lithium-ion dominating 74% of the residential storage market.
Wiring Fundamentals Made Simple
Here's where many DIYers stumble. The core components you'll need:
- Charge controller (prevents battery overcharging)
- DC-AC inverter (converts stored energy for home use)
- Proper gauge wiring (thicker isn't always better)
Wait, no - let's correct that. Actually, wire thickness does matter significantly. Undersized wiring can cause dangerous voltage drops. A good rule of thumb? For 12V systems, use 10 AWG wire for runs under 10 feet.
Safety Considerations You Can't Ignore
Last month's recall of 15,000 solar connectors highlights the importance of proper installation. Three critical safety measures:
- Install circuit breakers between components
- Use UV-resistant conduit for outdoor wiring
- Implement ground-fault protection
A solar technician from Florida recounts: "We found a DIY system using speaker wire instead of solar-rated cabling. It melted within two weeks of operation." Don't let this be you - always use components rated for solar applications.
Real-World Installation Case Study
Let's examine a 5kW system powering a Texas ranch:
| Component | Specification |
|---|---|
| Solar Panels | 15 × 330W modules |
| Batteries | 4 × 5kWh lithium-ion |
| Inverter | 48V hybrid model |
The system achieved full energy independence during summer months, though winter required grid backup during prolonged cloudy periods. This demonstrates the importance of proper capacity planning - a step many first-time installers overlook.
Maintenance Tips for Longevity
Contrary to popular belief, solar batteries need regular check-ups. Monthly maintenance should include:
- Terminal cleaning (prevents corrosion)
- State-of-charge verification
- Thermal inspection
A San Diego installer notes: "We've seen battery lifespan double simply through proper maintenance. It's like changing your car's oil - skip it at your peril."
Future-Proofing Your System
With battery technology advancing rapidly, how can you ensure your system remains relevant? Consider modular designs allowing easy capacity expansion. The latest trend? Bi-directional EV charging integration - using your electric vehicle as supplemental storage.
As one early adopter in California put it: "My Ford F-150 Lightning acts as backup power during outages. It integrates seamlessly with my solar array through Ford's Intelligent Backup Power system." This convergence of technologies creates exciting possibilities for holistic energy management.
Regulatory Landscape Update
New UL 9540 safety standards effective June 2025 will impact battery installations. Key changes include:
- Mandatory thermal runaway containment
- Enhanced fire rating requirements
- Stricter installation certification
While these regulations increase upfront costs, they significantly improve system safety. As the industry matures, such standards help build consumer confidence in solar+storage solutions.
