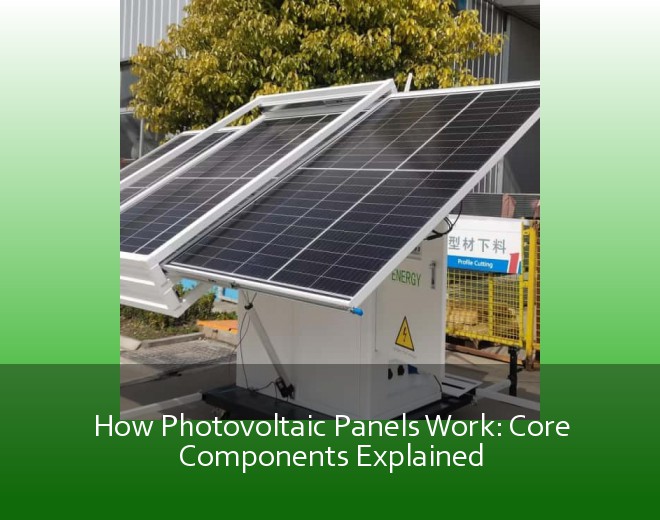

How Photovoltaic Panels Work: Core Components Explained

The Essential Anatomy of a Photovoltaic Panel

Ever wondered what makes solar panels tick? Let's peel back the layers of these energy-harvesting marvels. A typical photovoltaic panel contains six critical components working in harmony:

Solar Cells: The Heartbeat of Energy

These silicon-based squares are where sunlight transforms into electricity through the photovoltaic effect. Think of them as microscopic power factories – when photons knock electrons loose, we get direct current (DC) electricity. Modern panels mostly use either monocrystalline or polycrystalline cells, with efficiency rates now hitting 22-24% in commercial models.

Encapsulation Layers: More Than Just Protection

The EVA (ethylene-vinyl acetate) sandwich matters more than you'd think. These adhesive layers do triple duty:

• Preventing moisture intrusion
• Reducing mechanical stress
• Enhancing light transmission

Structural Warriors: Framing & Backsheets

Aluminum frames aren't just for looks – they're calculated to withstand 140mph winds and 50lb snow loads. The backsheet? That's your electrical insulation guardian, using materials like Tedlar® to prevent energy leakage and fires.

2024's Game-Changing Innovations

Manufacturers are now testing graphene-enhanced cells that boost conductivity by 40% while reducing silicon use. Another breakthrough? Bifacial panels that harvest light reflected from rooftops or snow, increasing output by 15-30% in snowy regions.

Keeping Your Panels at Peak Performance

Here's where most homeowners stumble. Simple maintenance like quarterly cleaning can prevent up to 20% energy loss. But watch out for "invisible killers" – partial shading from new tree growth or accumulated dust that doesn't wash off in rain.

Take the case of a Colorado school district that boosted annual output by 18% just by trimming nearby pines. Or the Arizona solar farm that installed robotic cleaners after realizing dust reduced efficiency by 5% monthly during dry seasons.

When Components Fail: Early Warning Signs

Look for these red flags:

• Discoloration in encapsulation layers
• Hot spots visible through thermal imaging
• Unexplained voltage drops

So, what's the takeaway? Understanding your panel's anatomy isn't just technical nitpicking – it's the key to maximizing ROI and catching issues before they become expensive headaches. With solar adoption growing 35% year-over-year globally, knowing these components helps you make informed decisions whether you're a homeowner or renewable energy professional.

Related Contents

Solar Power Systems: Core Components Explained

You know how people complain solar doesn't work when the sun's down? Well, that's where battery systems become game-changers. Lithium-ion solutions now store excess energy with 95% round-trip efficiency, compared to just 70% for lead-acid alternatives. But wait, no... actually, some flow batteries achieve 80% efficiency while lasting twice as long.

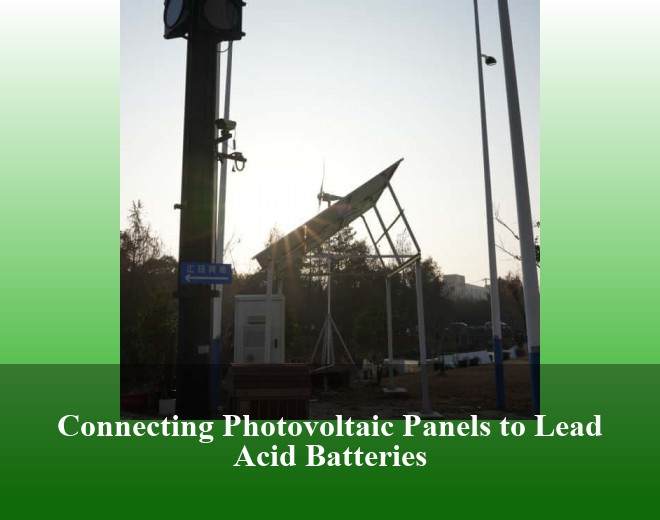

Connecting Photovoltaic Panels to Lead Acid Batteries
