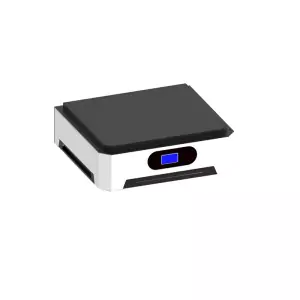

Stackable Home Energy Storage System
Stackable Home Energy Storage System
Chat OnlineApplications
Ideal for powering small-capacity access network equipment, household electrical appliances, commercial power backup systems, and household backup power solutions.
Advantages
Equipped with centralized control functionality for seamless management, even when unattended. Enables real-time monitoring through a mobile app for ultimate convenience and peace of mind.
Specification
|
product name |
Stackable Home Energy Storage System |
||||
|
serial number |
parameter item |
Specification Description |
|||
|
1 |
battery model |
HJD-HSSL-SM01 |
HJD-HSSL-SM02 |
HJD-HSSL-SM03 |
HJD-HSSL-SM04 |
|
2 |
Battery Type |
||||
|
3 |
battery capacity |
100Ah |
200Ah |
300Ah |
400Ah |
|
4 |
Rated voltage |
48Vdc |
|||
|
5 |
voltage range |
40Vdc~54Vdc |
|||
|
6 |
Parallel quantity |
1 |
2 |
3 |
4 |
|
7 |
Rated charge and discharge current |
50A |
100A |
100A |
100A |
|
8 |
Maximum charge and discharge current |
100A |
200A |
200A |
200A |
|
9 |
cycle life |
≥2000 times@80%DOD@25℃ |
|||
|
10 |
way of communication |
RS485/CAN |
|||
|
11 |
display screen |
LCD/LED display (optional) |
|||
|
12 |
Module size (W*D*H)/(for reference) |
Single module: 600*500*200mm |
|||
|
13 |
Module weight/(for reference) |
Single module: 55kg |
|||
|
14 |
degree of protection |
IP55 |
|||
|
15 |
Relative humidity |
10%~90% |
|||
|
16 |
Operating temperature |
0℃~50℃ , -10℃ ~50℃ |
|||
|
17 |
installation method |
stacked |
|||
|
18 |
Fastener |
Standard Fixed/Mobile Base |
|||
|
19 |
Product Certification/Certificate |
UN38.3/CE/UL1973 |
|||
